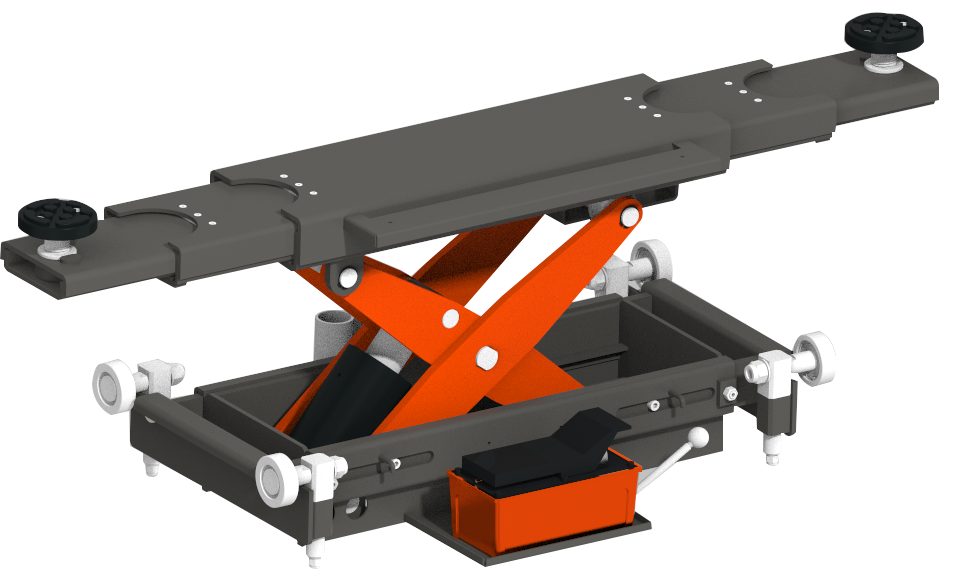

J40E | 4.0T

Share:
Optional Parts Product Details


·4-Ton Lifting Capacity: Handle most sedans, large MPVs, heavy-duty SUVs, pickup trucks, and light trucks.

·Wide Wheelbase Compatibility: An adjustable support beam (880mm - 1920mm) accommodates vehicles with broader stances, including large MPVs, heavy-duty pickups, and even school buses.
·An effective height of 400mm over platform, sufficient to lift large tires to a free-rolling state. (R22, approx. 850mm diameter)
·Minimum Height over platform: 110mm, easy access for low-clearance vehicles
·Powered by Lead-acid battery. A full charge delivers approximately 60 lifting cycles at rated capacity (at 20°C ambient temperature).
·Electric Hydraulic Drive, low operating noise.
·Electric push-button control for easy and convenient operation.
·Mechanical Locks with electric release, no external air supply required.
·Standard Jack includes 4 height extensions for increased lifting height. (2 pieces with an effective height of 100mm and 2 pieces with an effective height of 50mm)
·Mechanical Safety Locks: Prevent uncontrolled descent.
·Two-button Descent Operation: Prevent accidental crushing due to accidental lowering.
·Spring-Loaded Cradle Structure: Prevent unintended movement.


Technical Data

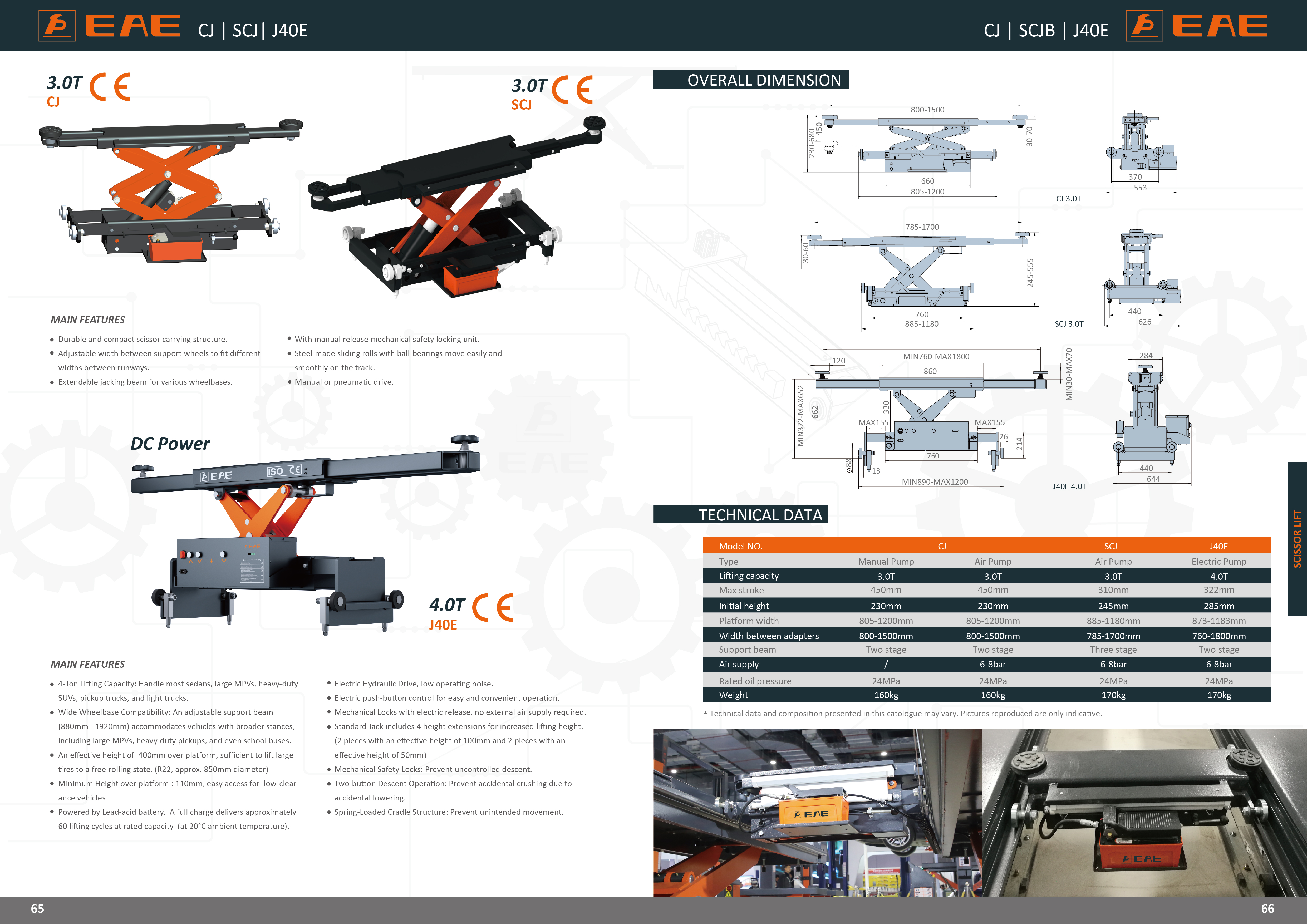

Brochure
Parameter CJ SCJ J40E
Model NO. CJ SCJ J40E
Type Manual Pump Air Pump Air Pump
Electric Pump
Lifting capacity 3.0T 3.0T 4.0T
Max stroke 450mm 450mm 310mm
322mm
Initial height 230mm 230mm 245mm
285mm
Platform width 805-1200mm 805-1200mm 885-1180mm
873-1183mm
Width between adapters 800-1500mm 800-1500mm 785-1700mm
760-1800mm
Support beam Two stage Two stage Three stage
Two stage
Air supply / 6-8bar 6-8bar
Rated oil pressure 24MPa 24MPa 24MPa
Weight 160kg 160kg 170kg
